Marantz Cinema 60, Ultra HD 8K, Alexa, Google Assistant, Siri, Heos multiroom, Dolby Atmos, DTS:X, HDR Dolby Vision…

Back to the range of Marantz 2022/2023 audio-video amplifiers to discuss the Cinema 60 model never mentioned in our columns, available in the brand's catalog in addition to the Marantz Cinema 60 DAB already presented. To find out all about the other references in the brand's Home Cinema amplifier range, just click on the following references: Marantz Cinema 70s, Marantz Cinema 50, Marantz Cinema 40, Marantz AV10 and Marantz AV10.

To put it simply, and as its name suggests, the Marantz Cinema 60 is none other than the Marantz Cinema 60 DAB without the DAB+ tuner. It may seem wrong but it gets better by writing it…

Marantz Cinema 60, main developments

For the rest, we therefore find exactly Cinema 60, namely the superb new design inaugurated on the manufacturer's audiophile products, the Marantz Model 40n network player, the Marantz CD 60 audio CD player or the Marantz SACD 30n player. Another important development of this new series of equipment, the name Cinema present within the references of the products. This should be seen as the desire of the Californian firm Masimo, new owner of Sound United (Bowers & Wilkins, Definitive Technology, Denon, Marantz, Polk Audio) since February, to position the Marantz brand on the premium Home Cinema market, in addition to that of the Hi-Fi.

Marantz Cinema 60 main evolutions, the sequel…

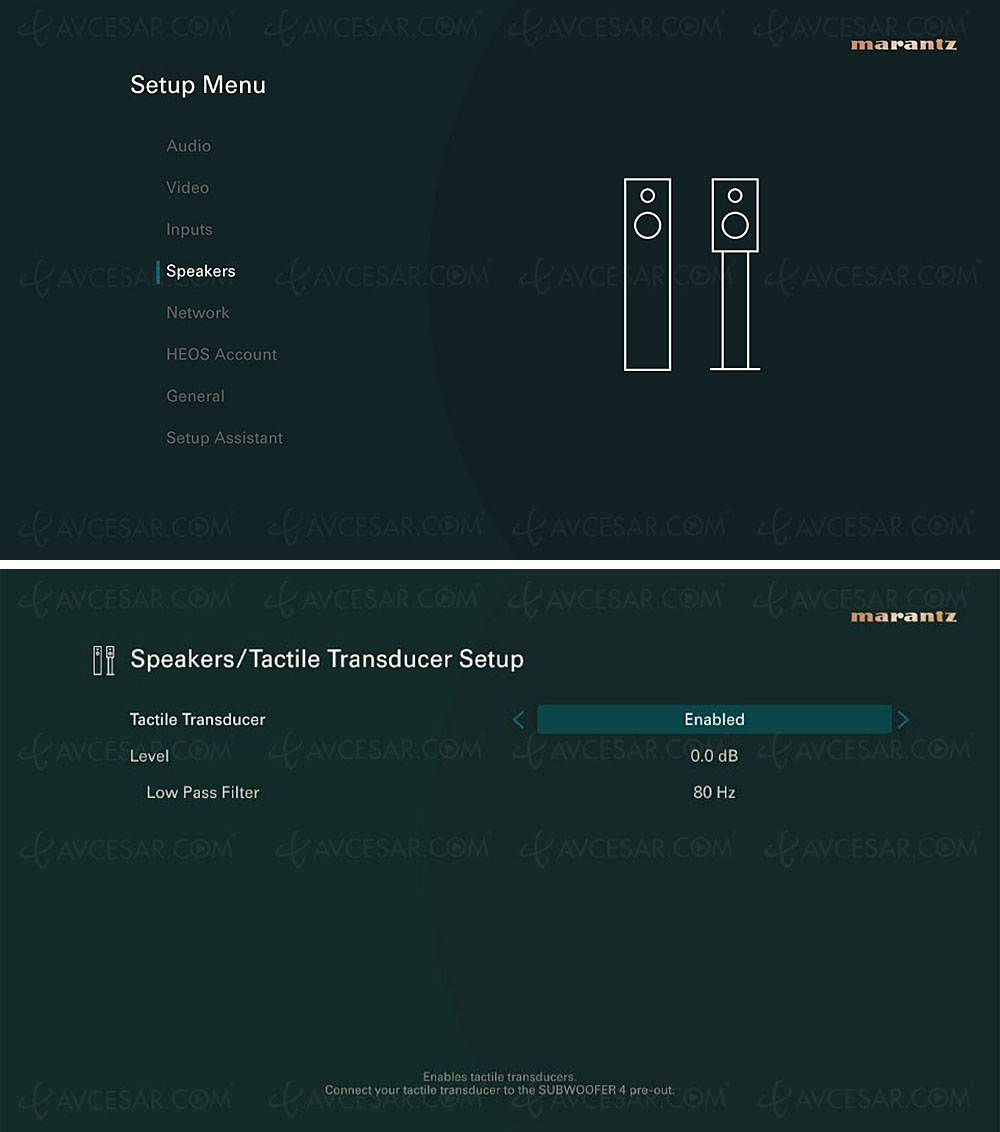

The Marantz Cinema 60 is therefore the worthy successor to the Marantz SR5015. Of course, it benefits from all the specifications of the latter, but in addition to its new aesthetics, it also has some notable new features, first and foremost a 1080p color OSD (and not 480p). A lot of information is now available on the screen, in particular on the nature of the input signals and those of the output with, for example, the channels actually active. We also note the presence of three HDMI 2.1 inputs (against only one on the SR5015).

Marantz Cinema 60, main specs

We still notice a pre-amplifier mode on all channels with a 7.2 Pre-Out output, management of HDR10, HDR10+, HDR HLG and HDR Dolby Vision technologies, 8K UHD Upscaling up to 60 Hz and the possibility of apply the available audio processing to a Dolby signal, for example triggering DTS Virtual:X on a Dolby Digital 5.1 signal. Otherwise, as its reference indicates, the Marantz Cinema 60 has a "simple" FM tuner.

To come back to the HDMI 2.1 inputs/outputs, these support all the features of the standard: VRR, ALLM, eARC, QMS, QFT, Ultra HD 4K 120 fps up to Ultra HD Upscaling 8K 60 Hz (see our news HDMI 2.1 standard, official additions welcome, technical and ergonomic).

Marantz Cinema 60, the sequel to the main specifications

For the rest, the Marantz Cinema 60 still has seven channels of amplification, HDAM (Curent Feedback type circuit) pre-amplification stages specially developed by the late Ken Ichiwata, the brand's former ambassador, capacitors accumulating a capacity of 20,000 microfarads, compatibility with 3D audio processing Dolby Atmos, Dolby Atmos Height Virtualization (to simulate the height speakers in the absence of these), DTS:X and DTS Virtual:X (to simulate the height speakers in case of absence of these). Still at the equipment level, there is the display of signal or volume information superimposed on an Ultra HD/4K stream. Precision, the Marantz Cinema 60 is certified Roon Tested.

Plus the availability of the Bluetooth TX function to broadcast the audio signal to suitable headphones in addition to the speakers. It is thus possible to enjoy your music on the speakers in the living room but also in the kitchen or the bedroom via wireless headphones.

Marantz Cinema 60, Heos multiroom function and connectivity

For the rest, we find on this 7.2 model the functions Works with Hey Google, Works with Alexa and the Siri assistant. Ditto for the Heos multiroom functionality. This amplifier can therefore easily be transformed into a link in a larger audio chain with real Heos HS2 speakers, to add sound to a home.

Marantz Cinema 60, Bulk Specs

We also note the Bluetooth and dual-band Wi-Fi compatibility (2.4 GHz/5 GHz), the Spotify Connect function in addition to access to the Tidal and Deezer streaming services.

Otherwise, the Marantz Cinema 60 is a Class A/B model with 7 x 140 W RMS (into 6 ohms) / 7 x 100 W RMS (into 8 ohms) power. There is a UPnP (DLNA) audio/photo gateway function associated with access to TuneIn web radios, AirPlay 2 certification, a front USB Host port and the possibility of controlling the Marantz Cinema 60 with an Android/iOS smartphone/tablet, after downloading a specific application called Marantz AVR App for free.

We still note the Gapless function and MP3, WMA, AAC, Flac, Alac and Wav compatibility (up to 192 kHz/24 bits). Similarly, support for DSD 2.8/5.6 MHz formats and 4 ohm speakers are included.

Also present, an automatic calibration of the system by Audyssey MultEQ XT microphone. Not to mention Audyssey Dynamic Volume and Audyssey Dynamic EQ processing, 192 kHz/24-bit converters and a Source Direct mode. Plus MDAX2 processing to improve rendering of compressed music and an FM tuner.

Marantz Cinema 60, larigot connectors

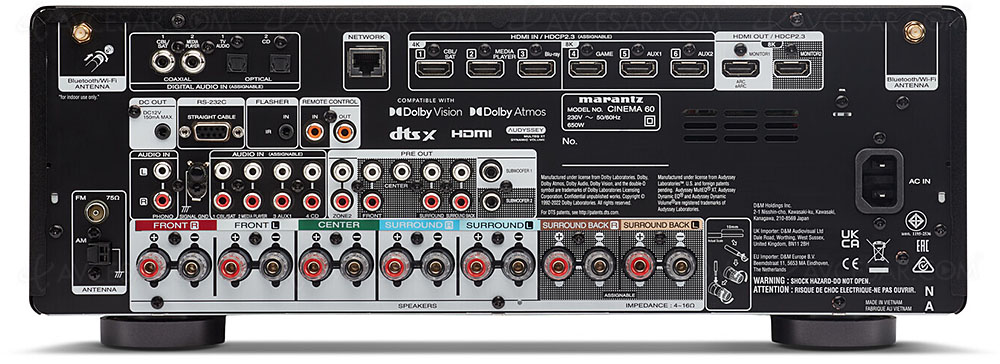

There are therefore six HDCP 2.3 certified HDMI CEC inputs including three 2.0b and, as already mentioned, three 2.1 plus two outputs transparent to Deep Color, xvYCC, 1080p/24 and 3D signals, Ultra HD 4K or 8K. There are also five RCA stereos, one Phono, two coaxial, two optical, a Pre-Out 2.0 output (zone 2), a Pre-Out 7.2 output, and two subwoofer outputs. Plus seven pairs of screw terminals and a USB Host port (front) and another Ethernet.

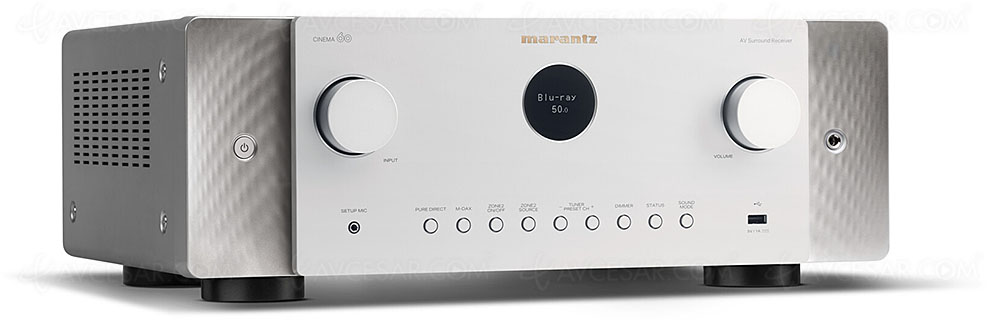

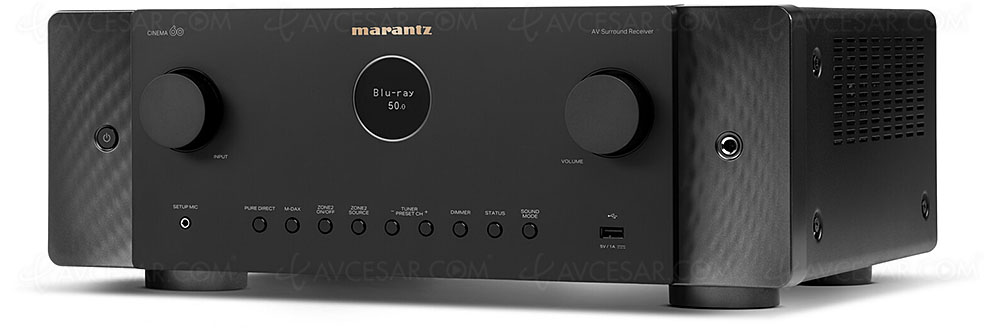

Availability of the Marantz Cinema 60, in black or silver finish, immediately. Indicative price: 1,349 euros.

Reminder of the key characteristics of the Marantz Cinema 60:

• Model: 7.2

• Power: 7 x 140 W at 6 ohms, 7 x 100 W at 8 ohms

• THD ( total harmonic distortion): 0.08%

• Inputs: 6 HDMI CEC including three 2.1, 5 RCA stereo, 1 Phono, 2 coaxial, 2 optical, 1 USB Host port (front) and 1 Ethernet port

• Outputs: 2 HDMI outputs (eARC function), 1 zone 2 stereo RCA, 1 Pre-Out 7.1, 2 subwoofers, 1 RS-232, 7 pairs of screw terminal blocks

• OSD functions

• UPnP (DLNA) audio gateway functions

• ALLM functions

• VRR functions

• QFT functions

• QMS functions

• Ultra HD 4K/120 im/ functions s

• Ultra HD 8K/60 fps functions

• Flac HD compatibility

• DSD 2.8/5.6 MHz compatibility

• Wav compatibility

• AirPlay 2 compatibility

• Alac compatibility

• MP3 compatibility

• WMA compatibility

• AAC compatibility

• DTS:X audio

• Dolby Atmos 5.2 audio. 2

• Audio Function Dolby Atmos Height Vi rtualizer

• Audio DTS Virtual:X

• Audio eARC function

• Audio Audyssey Dynamic Volume Processing

• Audio Audyssey Dynamic EQ Processing

• Audio Audyssey MultEQ XT Auto Calibration

• HDR10 video

• HDR HLG video

• Dolby Vision HDR video

• BT.2020 compatibility video

• Ultra HD Pass-Trought function video

• Video 3D Ready

• Video HDR10+

• Video Upscaling Function Ultra HD/8K (24/25/30/60)

• Video Upscaling Function Ultra HD/4K (24/25/30 /60/120)

• Network Control by IP

• Dual Band Wi-Fi network (2.4/5 GHz)

• Bluetooth TX network

• Heos Application network

• Hi-Res Audio streaming via USB/network: yes

• Web radio(s): TuneIn

• Hi-Res Audio certification

• HDCP 2.3 certification

• Certification Works with Alexa

• AM/FM tuner

• Works with Google Assistant certification

• Works with Apple Airplay certification

• Roon Tested

• Other(s): module integrated Heos multiroom

• Dimension s (W x H x D, mm): 442 x 354 x 235 mm (Wi-Fi antennas deployed)

• Consumption: 650 W (0.2 W in standby)

• Weight: 10, 9kg
