The Chinese brand therefore now has two 4K Ultra HD Blu-Ray turntables in its catalog, the Magnetar UDP800 which appeared in France at the end of 2022 (see our news Magnetar UDP800, Ultra HD Blu-Ray HDR Dolby Vision, DSD/SACD and dual HDMI) and the Magnetar UDP900.
Magnetar UDP800 Vs Magnetar UDP800, the main developments

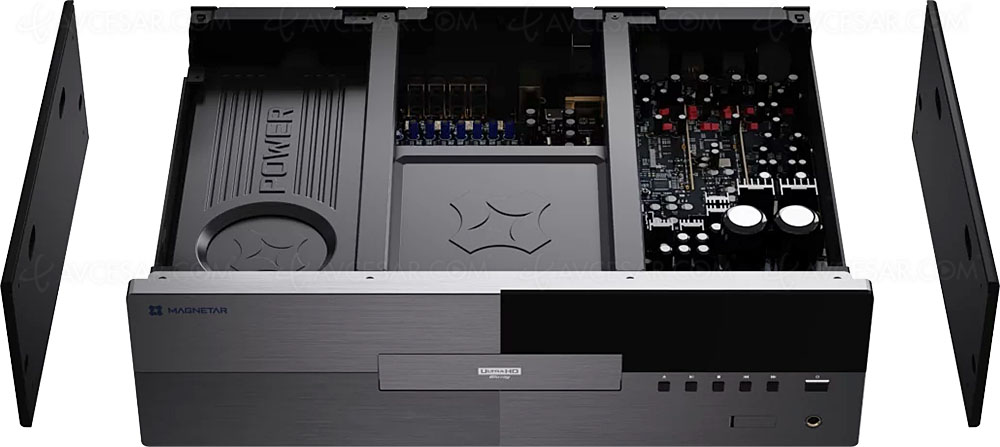

As a reminder, compared to the UDP800, the Magnetar UDP900 turntable has more connectors with a 7.1 analog output on RCA, a new six-layer printed circuit board and a dual power supply. A high-power switching power supply with high transient response is present for the digital section, while a toroidal transformer is dedicated to the analog section, all associated with a multitude of Japanese Rubycon electrolytic capacitors (30).
Using high quality oxygen-free copper wiring, metal shielding and full epoxy filling used to reduce vibration noise and heat, also improve audio quality. Finally, the Magnetar UDP900 also includes an ESS9038PRO Dac for the XLR stereo output and the RCA stereo outputs, an ESS9028PRO Dac for the 7.1 RCA output. In short, you will have understood that the Magnetar UDP900 is aimed both at lovers of large and beautiful images and at accomplished music lovers, in direct competition with the Panasonic DP-UB9000 player.
Magnetar UDP900, the main specifications

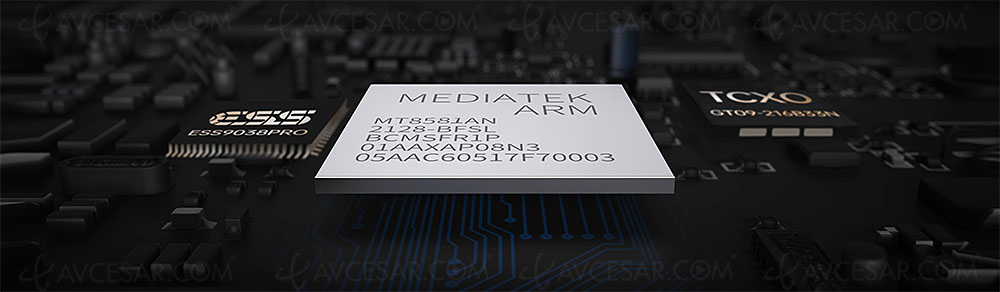

The Magnetar UDP900 is constructed from a structurally reinforced aluminum alloy chassis, which translates on the scale to almost twice the weight of the UDP800, 15.5 kg compared to 8 kilos. Within it still beats a MediaTek MT8581 heart. Support for USB hard drives (up to 16TB) for playback of local media files is provided.
For the rest of its specifications, the Magnetar UDP900 uses those of the UDP800, namely HDR Dolby Vision compatibility in addition to HDR10+, management of DTS:X and Dolby Atmos soundtracks, Hi- Res Audio, DSD compatibility (up to 5.6 MHz) and playback of SACD discs. Similarly, the UPnP (DLNA) audio gateway function is required with the management of AIFF, Alac, Flac and Wav files.
Magnetar UDP900, the connection
In addition to the 7.1 RCA analog output, the connectors include a double HDMI output, a coaxial output, an optical, an RCA stereo, an XLR balanced stereo, an RS-232C, a USB Host port and an Ethernet port.
Immediate availability. Indicative price: €2,999 for the Magnetar UDP900 turntable, €3,099 for the Magnetar UDP900 multi-region/multi-zone turntable.
Reminder of the key characteristics of the Magnetar UDP900:
• Type: Ultra HD Blu-Ray deck
• Codec compatibility: AIFF, Alac, APE, Flac, Wav
• DSD compatibility: yes
• Dolby Vision HDR function
• HDR10 function
• HDR10+ function
• Outputs: dual HDMI 2.0b outputs, one coaxial, one optical, 1 stereo RCA and 1 stereo XLR , 1 7.1 RCA output, 1 RS-232C, 1 USB-A port, 1 Ethernet port
• UPnP (DLNA) audio gateway function: yes
• Hi-Res Audio certification
• Other (s): Hi-Res Audio certification
• SACD function
• Dac: ESS9038PRO Dac for XLR stereo output and RCA stereo outputs and an ESS9028PRO Dac for 7.1 RCA output
• Answer in frequency: 20 - 20,000 Hz
• Consumption: 60W
• Standby consumption: 0.5 W
• Weight: 15.5 kg
