For the rest, we find a native 10-bit panel [abc]Ultra HD[/abc] [abc]4K[/abc] and a refresh rate of 144 hertz. The televisions of the C7K series count 336 zones for the 50" model, 720 zones for the 55" model, 1,008 zones for the 65" model, 1,248 zones for the 75" model, 1,568 zones for the 85" model, 2,048 zones for the 98" model and 2,880 zones for the 115-inch model.

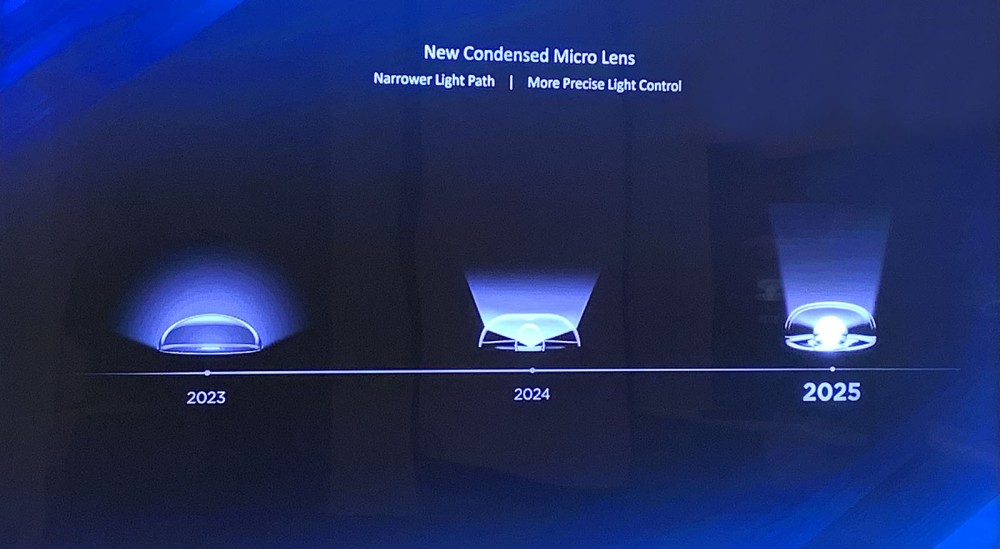

These diffusers are equipped with very small diodes, measuring 100 microns, equipped with a lens that improves the light diffusion angle to 160°, compared to 130° for previous models. This lens not only improves screen uniformity by reducing the Clouding phenomenon by 60.63%, but also minimizes Blooming, which manifests itself as halos around the luminous elements on a dark background thanks to an optimized shape for a significantly better controlled light path (less leakage and less disturbance of neighboring diodes). Also worth knowing about the diodes that equip this seventh generation Mini LED, their brightness is 33% higher than the previous generation while consuming approximately 40% less energy.
Of course, the TCL C7K's backlighting system incorporates the technological advances of previous models, the TCL C89B or TCL X955. The LED diodes used are identical in terms of colorimetric characteristics, ensuring optimal image homogeneity. In addition, these LEDs are capable of changing state very quickly, making it possible to eliminate shadows on moving objects thanks to Direct Drive technology. This precise brightness control, on 23 bits, is carried out on notoriously more than 65,536 levels and ensures faithful reproduction of the slightest image variations. Thus, these are taken into account and reproduced on the screen for increased realism. As a result, the luminous halo phenomenon is reduced by 96%, good news for better controlling Blooming linked to transmissive LCD technology.

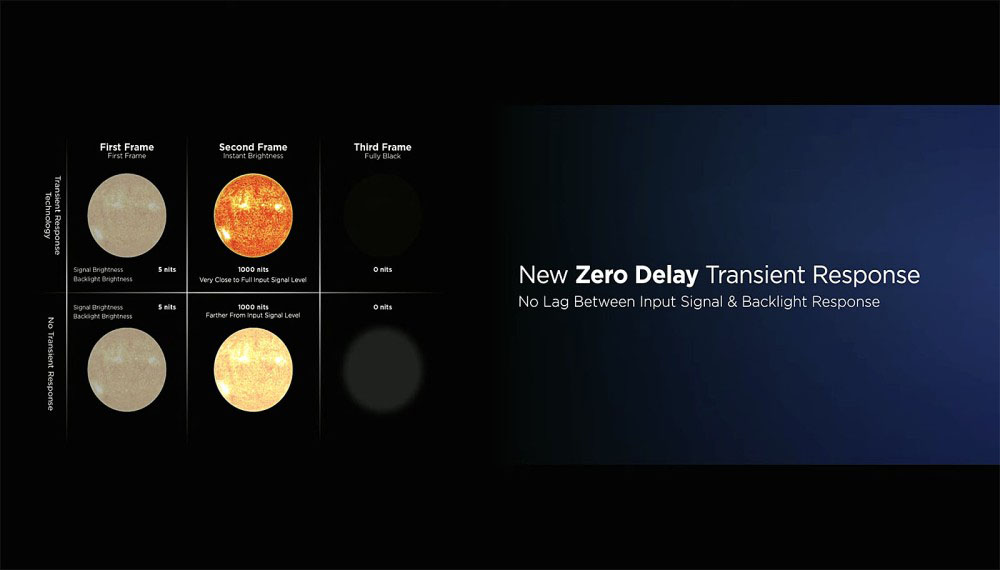

Similarly, TCL announces that the diodes of the generation 7 Mini LED are capable of changing state extremely quickly, a time less than that required to display an image, even with a 120 hertz signal. Thus, there is no latency between the signal and the response of the diodes, which until now caused a slight blurring of the image and a lack of dynamics. TCL calls this capacity of its Mini LED 2025 system Zero Delay Transient Response.
To conclude the hardware improvements associated with this 7th generation Mini LED signed TCL, we must mention the CrystGlow HVA Panel process (except for the 50" only HVA). Already mentioned in our news relating to the Samsung 2025 TV range, this offers a wider viewing angle associated with a very high-performance anti-reflective coating.
TCL C7K, technical characteristics and connectivity££££
The TCL C7K displays a significant peak brightness of 2,000 nits for the 50", 2,600 nits for the 55" and 65", 3,000 nits for the 75", 85", 98" and 115 inches. They also incorporate QLED Pro technology allowing 98% coverage of the DCI-P3 gamut thanks to nanocrystals with a new alloy for a more marked. TCL mentions more "vibrant" nanocrystals and increased longevity, 100,000 hours of viewing in the best conditions, that is to say, benefiting from preserved Quantum Dots qualities (before degradation). The management of HDR10, [abc]HDR10+[/abc], [abc]HDR10+ Adaptive[/abc] and [abc]HDR Dolby Vision[/abc] technologies, associated with the Dolby Vision IQ functionality (brightness sensor), is in place. We can also mention the Filmmaker mode, the Imax Enhanced certification, 120 Hz MEMC motion compensation and an anti-blue light mode. All implemented by the AiPQ Pro processor. Namely, a Dolby Vision Filmmaker Mode is planned via [abc]Firmware[/abc] update by the end of 2025.

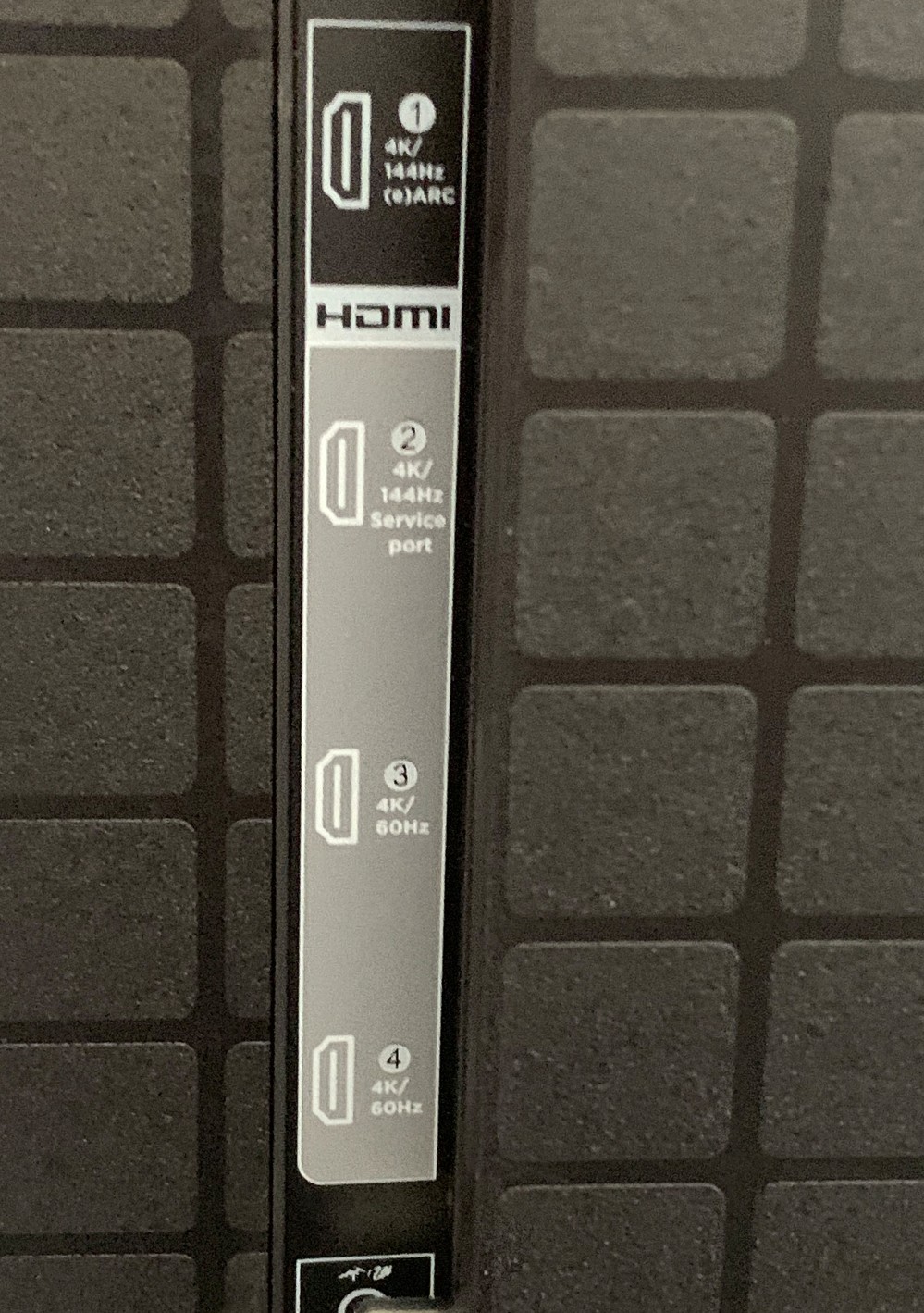

In terms of connectivity, the TCL C7K TVs are equipped with four [abc]HDMI[/abc] ports called [abc]2.1[/abc] (actually one [abc]HFR[/abc] 4K/144, one [abc]HFR[/abc] 4K/120 and two 60 Hz, Pentonic 700 chip) certified [abc]eARC[/abc], [abc]VRR[/abc] and [abc]ALLM[/abc]. Other connectors include an [abc]optical[/abc] output, a [abc]USB[/abc][abc]3.0[/abc] port, a USB Host 2.0 port, an [abc]Ethernet[/abc] port, a headphone output and a [abc]CI+ port[/abc].
Finally, DLG (Dual Line Gate) technology is present (except for the 50" model). The latter, by reducing the vertical resolution by half (therefore in [abc]1 080p[/abc] and not [abc]2 160p[/abc]), offers a 240 Hz display on the 55" specimens and 288 Hz on the 65" and larger diagonals for a smoother and more enjoyable video game experience.

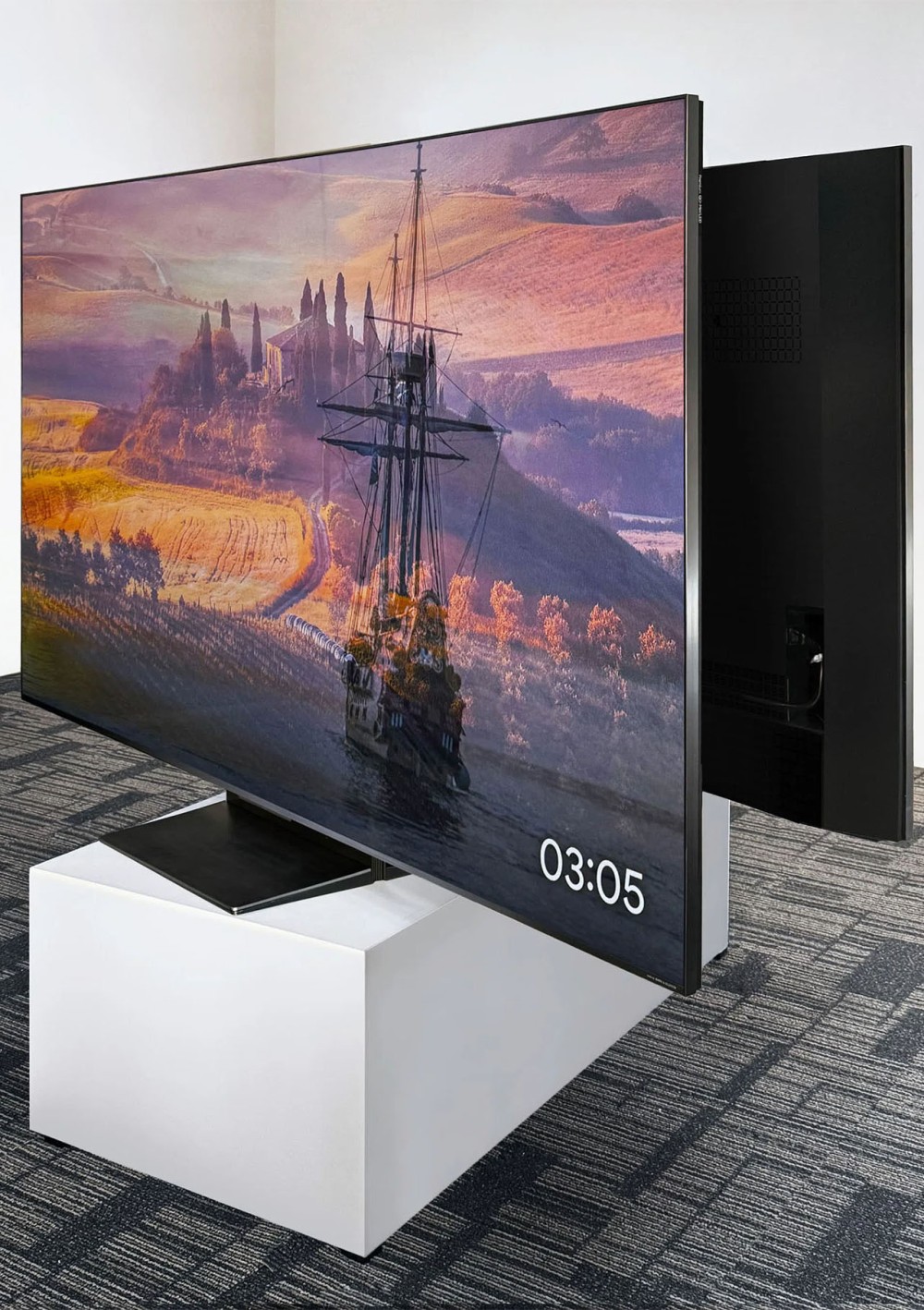

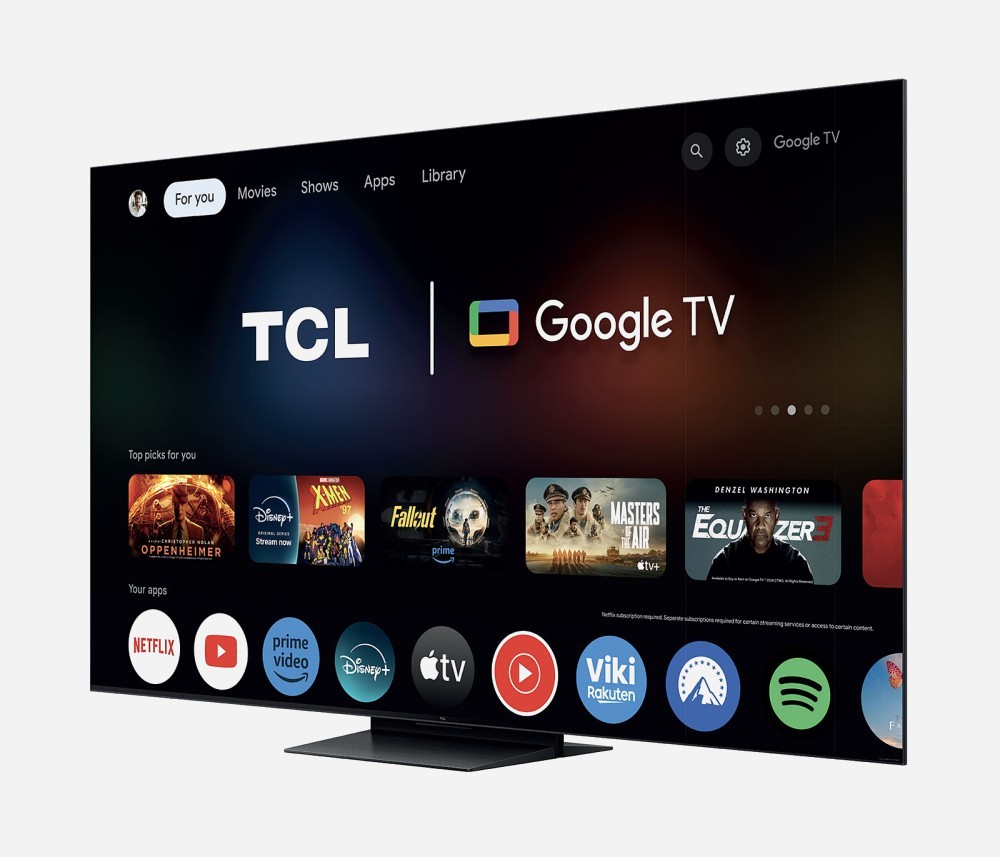

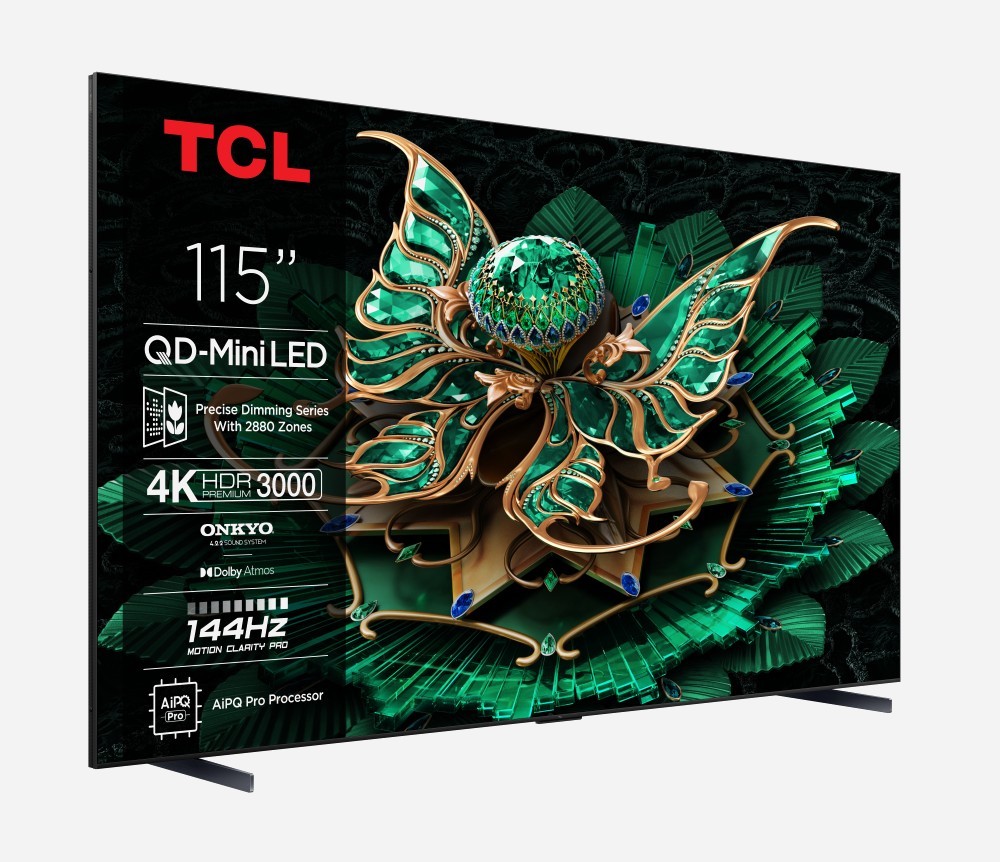

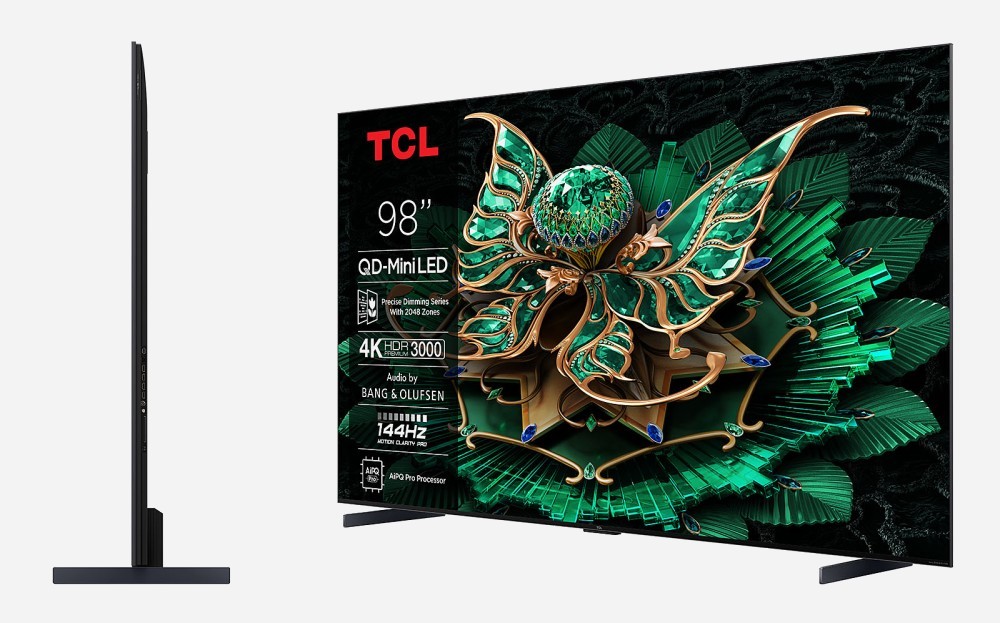

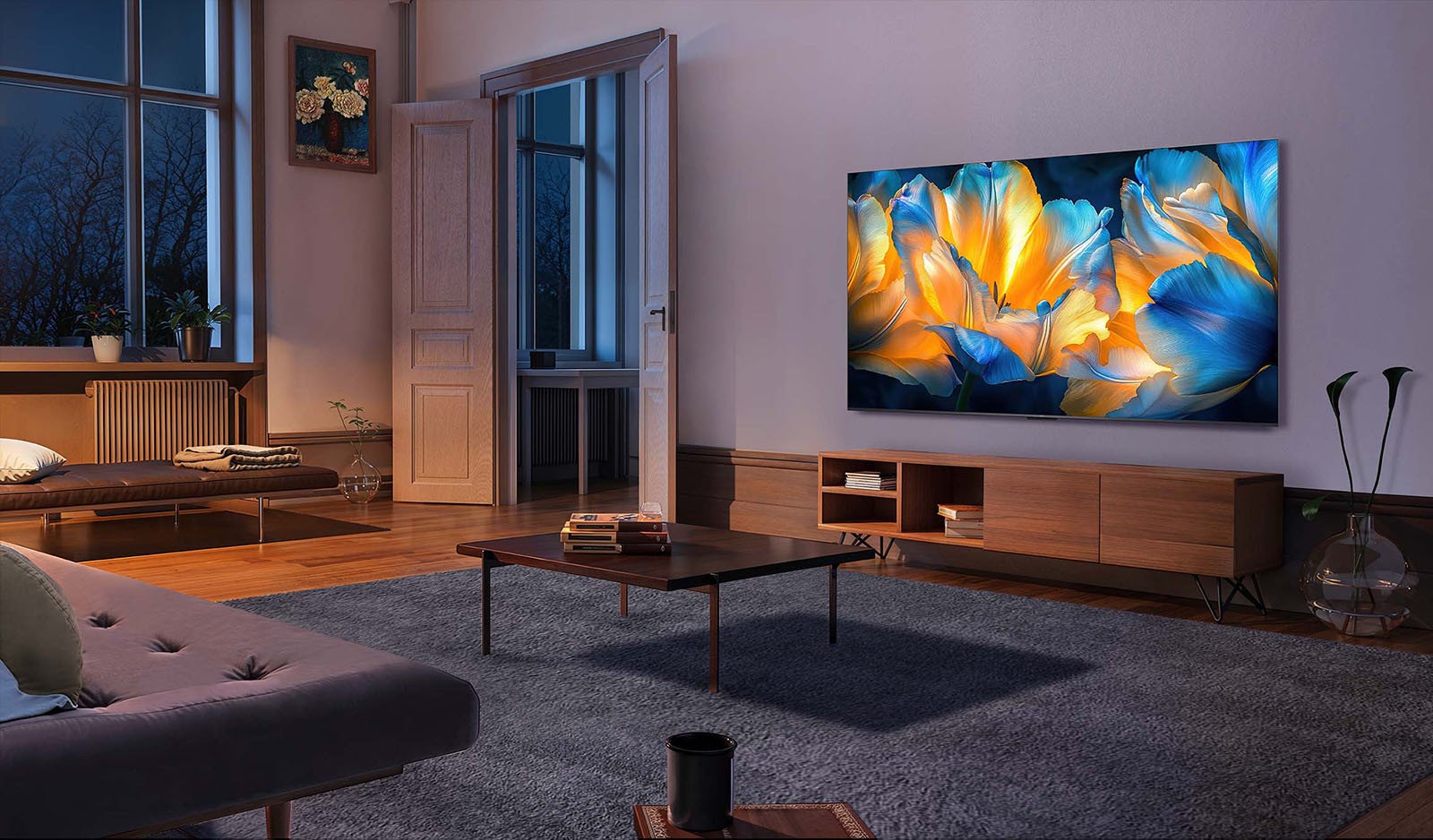

TCL C7K, minimalist design££££ Another remarkable point of the TCL C7K TVs is the almost total disappearance of the LCD panel frame. This one is still visible at the bottom of the LCD panel but it is very fine everywhere else (see photos above and below). Sober, elegant, statutory! Last detail, the TCL C7K TVs benefit from a central stand except on the 98" and 115" models equipped with a double stand (at each end of the screen). Availability expected at the end of March. Indicative prices: €799 for the TCL 50C7K, €1,199 for the TCL 55C7K, €1,399 for the TCL 65C7K, €1,999 for the TCL 75C7K, €2,499 for the TCL 85C7K, €3,499 for the TCL 98C7K and €14,000 for the TCL 115C7K. Reminder of the key characteristics of the TCL C7K TVs:
• 10-bit panel
• [abc]LCD[/abc] VA panel
• [abc]Ultra HD[/abc]/[abc]4K[/abc] panel
• CrystGlow HVA Panel (except the 50" only) HVA)
• Processor: Quad Core
• Mega Contrast Enhancement Function
• Wide Color Gamut Function
• UHD Color Extender Function
• Media Gateway Function [abc]UPnP[/abc] ([abc]DLNA[/abc])
• DVR Function
• [abc]eARC[/abc] Function
• [abc]VRR[/abc] Function
• [abc]ALLM[/abc] (Auto Low Latency Mode) Function
• 4K [abc]HFR[/abc] 120 Function
• Quantum Dots Function
• UHD Super Resolution Function
• Game Master Pro 2.0 Function
• DLG 288 Hz, DLG 240 Hz on the 55" (not available on the 50")
• AiPQ Function Pro
• [abc]HDR10[/abc] and [abc]HDR HLG[/abc]
compatibility• [abc]HDR10+[/abc]
compatibility• [abc]HDR10+ Adaptive[/abc]
compatibility• [abc]Miracast[/abc]
compatibility• [abc]HDR Dolby Vision IQ[/abc]
compatibility• [abc]HEVC[/abc]
compatibility• [abc]Dolby Atmos[/abc]
compatibility• [abc]HBBTV[/abc]
compatibility• FreeSync Premium Pro
compatibility• [abc]CEC[/abc]
compatibility• [abc]Canal Ready[/abc]
compatibility• [abc]Bluetooth[/abc] 5.4
• DTS Virtual:X Compatibility
• [abc]DTS-HD[/abc] Compatibility
• [abc]DTS:X[/abc] Compatibility
• [abc]HDCP[/abc] 2.2 Compatibility
• [abc]Wi-Fi[/abc] ax Compatibility
• [abc]Chromecast (built-in)[/abc] Compatibility
• Dolby Vision IQ HDR Compatibility
• Filmmaker Mode
• Imax Enhanced Certification
• Outputs: 1 [abc]optical[/abc], 1 headphone
• Inputs: 4 [abc]HDMI[/abc] 2.1 inputs, 1 USB Host 3.0 port, 1 USB Host 2.0 port, 1 port Ethernet, 1 [abc]CI+ port[/abc]
• AirPlay 2 multimedia
• HomeKit multimedia
• Google Assistant multimedia
• Works with Alexa multimedia
• Google TV multimedia
• MEMC motion compensation
• Mini [abc]LED[/abc] backlight system [abc]Local Diming[/abc]
• PPI 4600
• Input Lag: < 6 ms
• Number of zones: 336 on the 50", 720 on the 55", 1,008 on the 65", 1,248 on the 75", 1,568 on the 85", 2,048 on the 98"' and 2,880 on the 115 inch
• Peak brightness: 2,000 nits for the 50", 2,600 nits for the 55"/65", 3,000 nits for the 75", 85", 98" and 115 inches
• Tuner [abc]DVB-T[/abc]2
• Tuner [abc]DVB-C[/abc]
• Tuner [abc]DVB-S[/abc]2
• Sound section: 2.2 (4.2.2 on the 115")
• Power: 60 W (30 W on the 50")
