TCL C6K Mini LED Gen 7 TV, Specs Updates

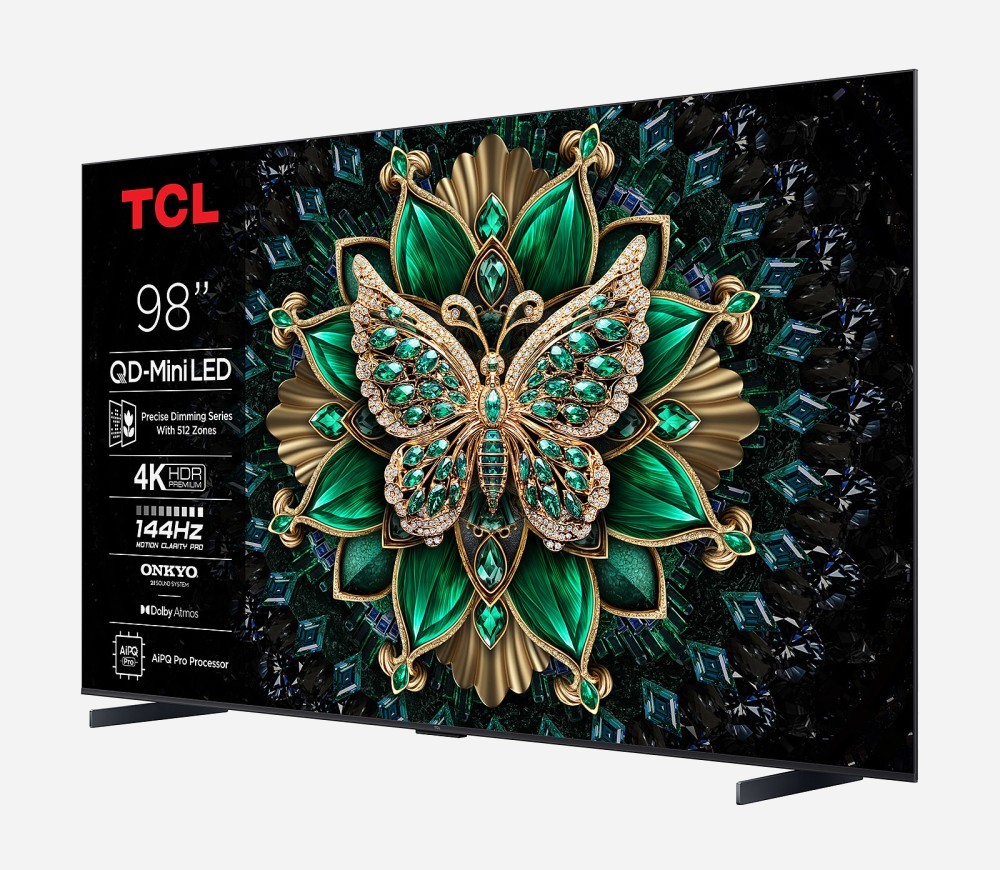

The C6K Mini LED TV series therefore has six references, the TCL 50C6K (127 cm), TCL 55C6K (140 cm), TCL 65C6K (165 cm), TCL 75C6K (191 cm), TCL 85C6K (216 cm) and TCL 98C6K (249 cm).

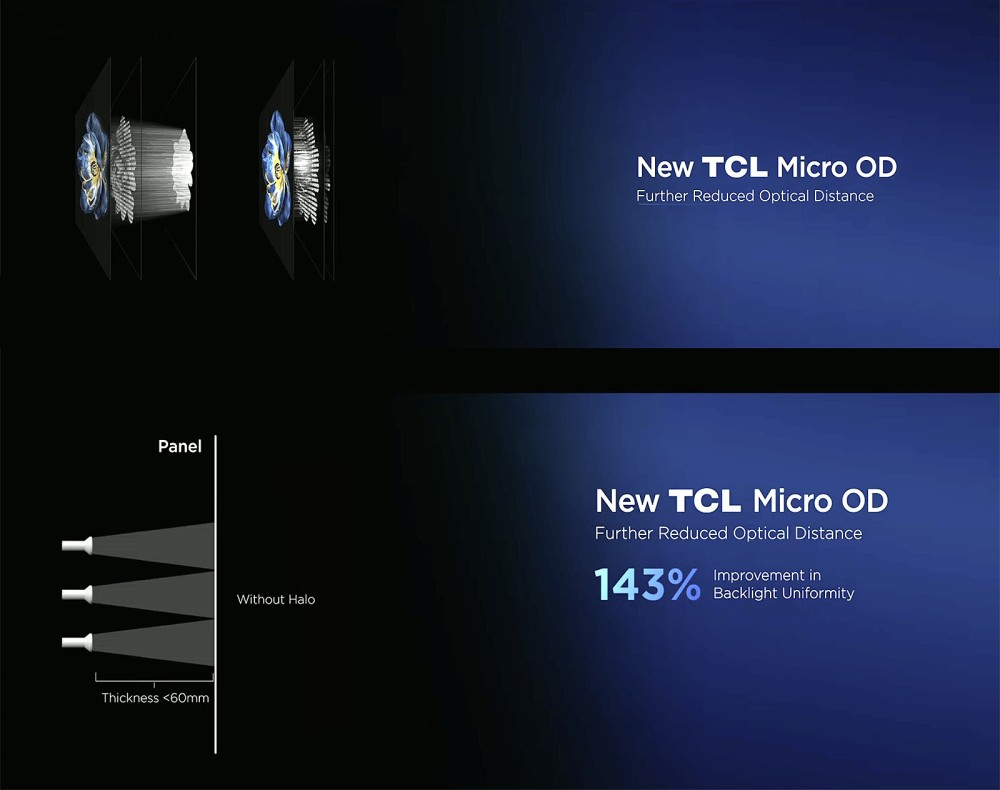

TCL C6K, 7th generation Mini LED backlight system££££ After its unveiling last March at a European conference, the TCL 2025 TV range is now known in detail. And to notice that some specifications provided then have evolved. We know for example that the Gen 7 Mini LED backlight system which equips the C6K diffusers is of OD30 obedience. Evolution of the specimens embedded in the 2024 TV series, TCL evokes the term Micro OD by specifying that the latter improves the uniformity of the image in unprecedented proportions of 143%.

For the rest, we find a native 10-bit panel [abc]Ultra HD[/abc] [abc]4K[/abc] and a refresh rate of 144 hertz. The televisions of the C6K series count 180 zones for the 50" model, 180 zones for the 55" model, 242 zones for the 65" model, 312 zones for the 75" model, 420 zones for the 85" model and 512 zones for the 98" model.

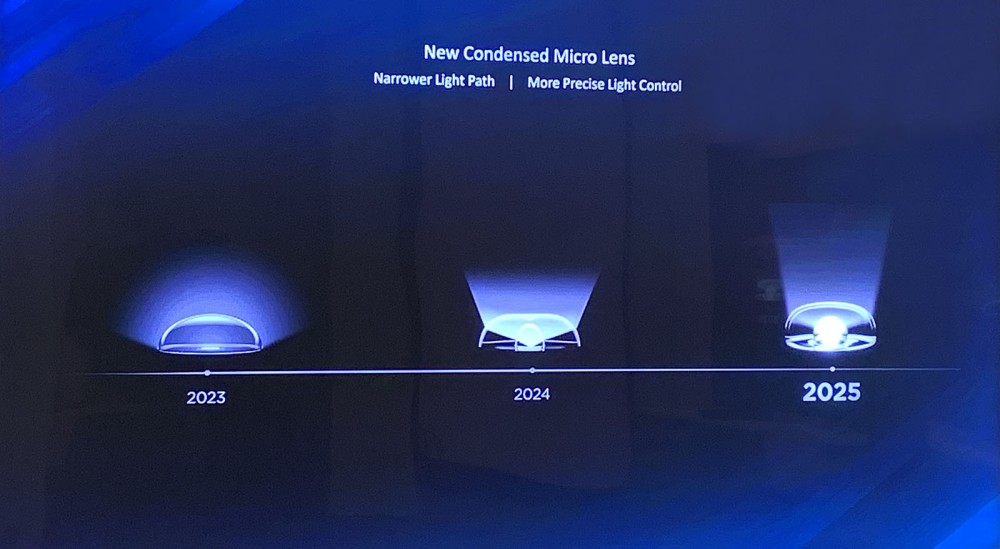

These diffusers are equipped with very small diodes, measuring 100 microns, equipped with a lens that improves the light diffusion angle to 160°, compared to 130° for previous models. This lens not only improves screen uniformity by reducing the Clouding phenomenon by 60.63%, but also minimizes Blooming, which manifests itself as halos around the luminous elements on a dark background thanks to an optimized shape for a significantly better controlled light path (less leakage and less disturbance of neighboring diodes). Also worth knowing about the diodes that equip this seventh generation Mini LED, their brightness is 33% higher than the previous generation while consuming approximately 40% less energy.

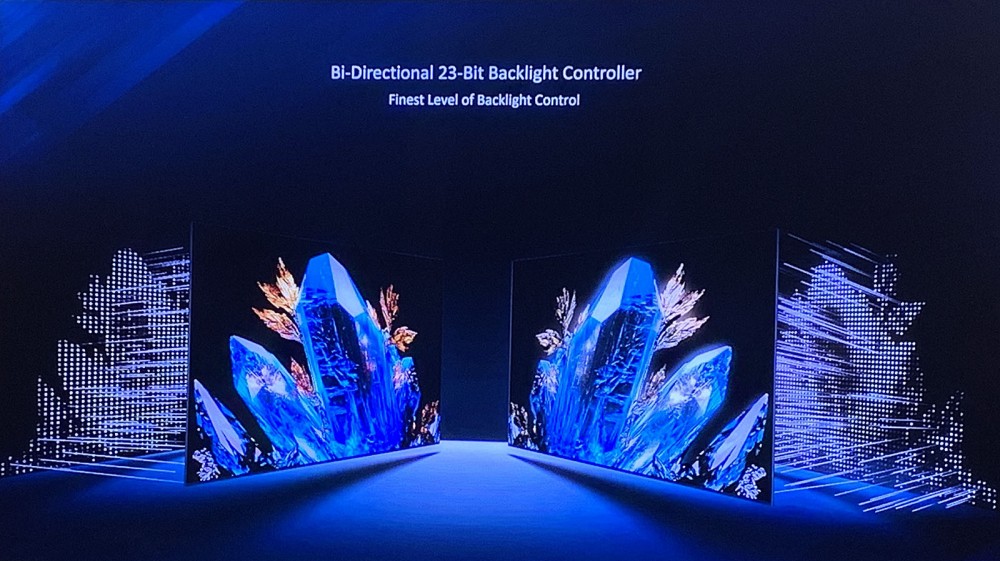

Of course, the TCL C6K backlighting system incorporates the technological advances of previous models, the TCL C89B or TCL X955. The LED diodes used are identical in terms of colorimetric characteristics, guaranteeing optimal image homogeneity. In addition, these LEDs are capable of changing state very quickly, making it possible to eliminate shadows on moving objects thanks to Direct Drive technology. This precise 16-bit brightness control ensures faithful reproduction of the slightest image variations. Thus, these are taken into account and reproduced on the screen for increased realism. As a result, the light halo phenomenon is reduced by 96%, good news for better controlling Blooming linked to transmissive LCD technology.

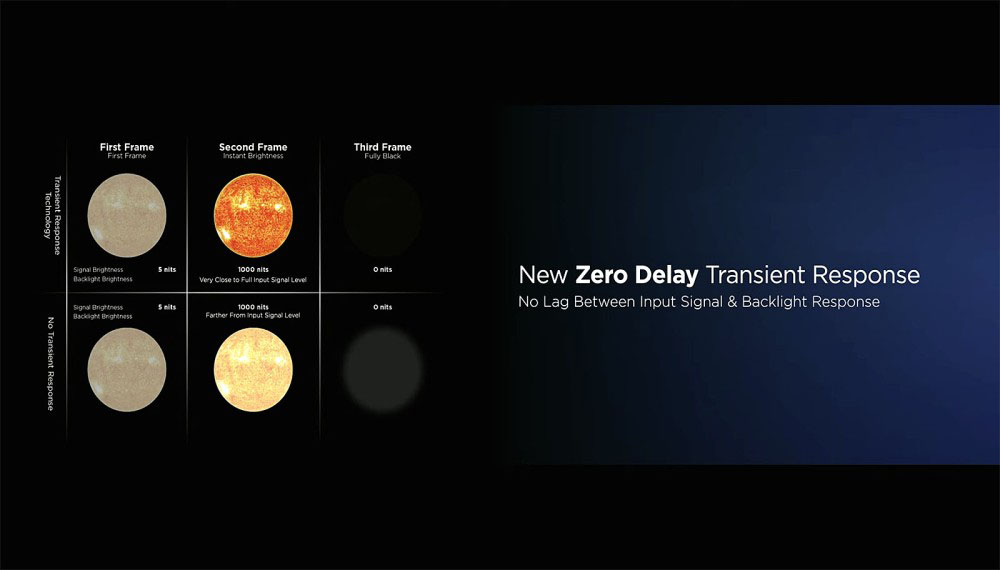

Similarly, TCL announces that the diodes of the 7th generation Mini LED are capable of changing state extremely quickly, a time less than that required to display an image, even with a 120 hertz signal. Thus, there is no latency between the signal and the response of the diodes, which until now was the cause of a slight blurring of the image and a lack of dynamics. TCL calls this capacity of its Mini LED 2025 system Zero Delay Transient Response.

To conclude the hardware improvements concomitant with this 7th generation Mini LED signed TCL, it is necessary to mention an HVA TV panel (a VA panel exclusive to CSOT). On the other hand, there is no CrystGlow coating as on the TCL C7K, C8K, C9K and X11H TV series. Namely, the 85" and 98" models are equipped with a matte screen.

TCL C6K, technical specifications and connectivity££££ The TCL C6K displays a significant peak brightness of 1,000 nits. They also incorporate QLED Pro technology allowing 93% coverage of the DCI-P3 gamut thanks to nanocrystals with a new alloy for a more pronounced reaction to light. TCL mentions more "vibrant" nanocrystals and increased longevity, 100,000 hours of viewing in the best conditions, that is to say, benefiting from preserved Quantum Dots qualities (before degradation). [abc]HDR10[/abc], [abc]HDR10+[/abc], [abc]HDR10+ Adaptive[/abc] and [abc]HDR Dolby Vision[/abc] technologies are supported, along with Dolby Vision IQ (light sensor). Other features include Filmmaker mode, Imax Enhanced certification, 120 Hz MEMC motion compensation and an anti-blue light mode. All implemented by the AiPQ Pro processor.

In terms of connectivity, the TCL C6K TVs are equipped with four [abc]HDMI[/abc] so-called [abc]2.1[/abc] ports (actually one [abc]HFR[/abc] 4K/144, one [abc]HFR[/abc] 4K/120 and two 60 Hz, Pentonic 700 chip) certified [abc]eARC[/abc], [abc]VRR[/abc] and [abc]ALLM[/abc]. Other connectors include an [abc]optical[/abc] output, a [abc]USB[/abc][abc]3.0[/abc] port, a USB Host 2.0 port, an [abc]Ethernet[/abc] port, a headphone output and a [abc]CI+ port[/abc].

TCL C6K, 2.1 sound section££££ TCL C6K televisions are equipped with [abc]2.1[/abc] sound equipment by Onkyo ([abc]2.0[/abc] on the 50"), compatible with [abc]Dolby Atmos[/abc], [abc]DTS-HD[/abc] and DTS Virtual:X. For precision, the TCL C6K screens have a [abc]DVB-T[/abc]2, [abc]DVB-S[/abc]2 and [abc]DVB-C[/abc] tuner.

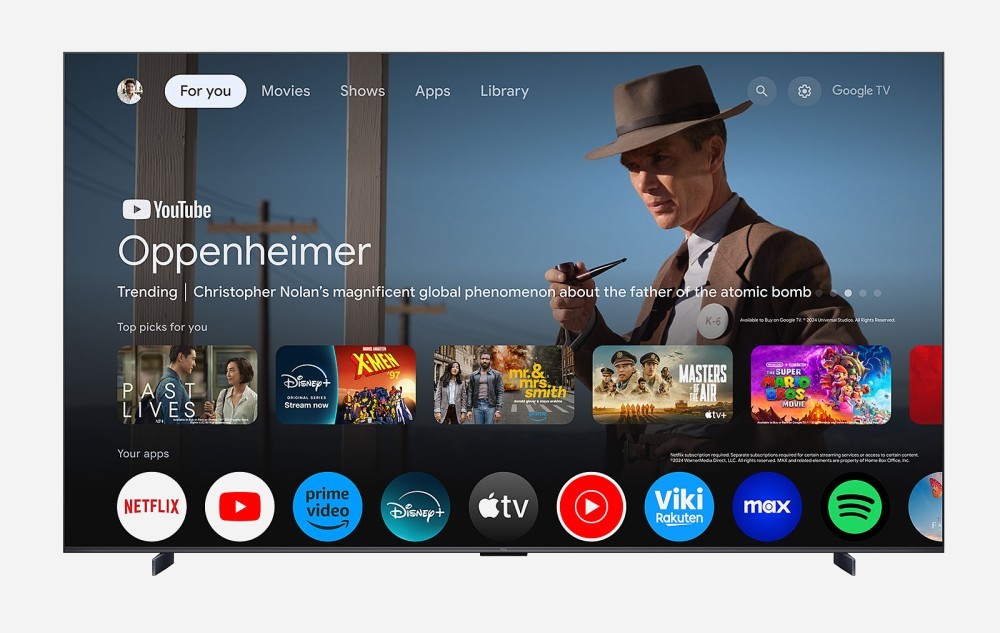

TCL C6K, Smart Google TV££££ As for Smart TV features, the TCL C6K televisions run on Google TV (Android 12) and support connectivity [abc]Wi-Fi[/abc] 6 as well as [abc]Bluetooth[/abc] 5.4. [abc]AirPlay 2[/abc] and HomeKit certifications, as well as compatibility with Alexa, are also present, allowing for seamless integration into a connected environment.

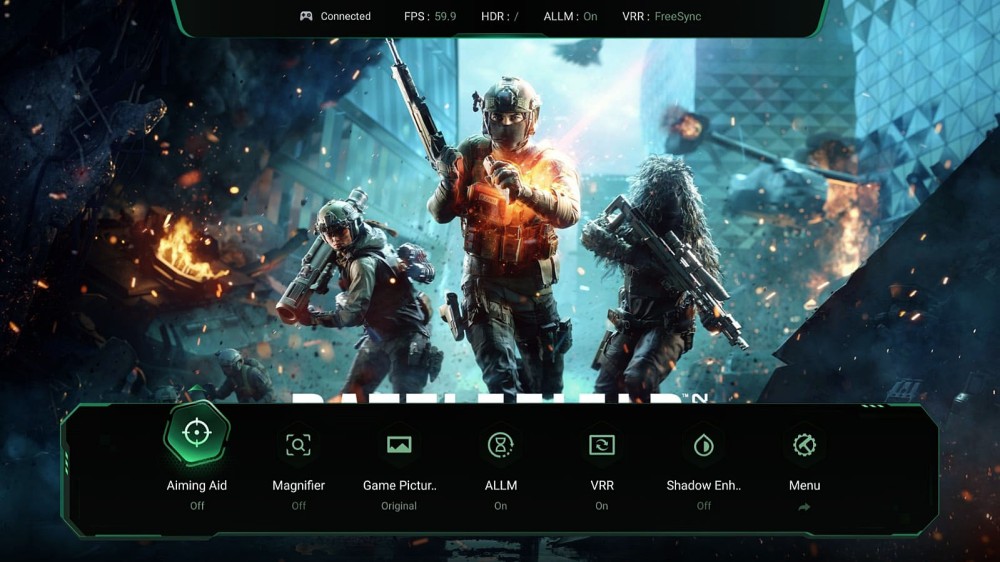

TCL C6K, Game Master function with DLG 288 Hz££££ TCL has not forgotten video game enthusiasts with the new Game Master feature. In addition to managing the 144 Hz frequency, FreeSync Premium Pro and direct access to various TV settings to optimize the gaming experience, the TCL C6K TVs feature minimal Input Lag, less than 6 ms in the presence of a 120 hertz signal.

Finally, DLG (Dual Line Gate) technology is present. The latter, by reducing the vertical resolution by half (so in [abc]1 080p[/abc] and not [abc]2 160p[/abc]), offers a 240 Hz display on the 55"/65" models and 288 Hz on the largest diagonals for a smoother and more enjoyable video game experience.

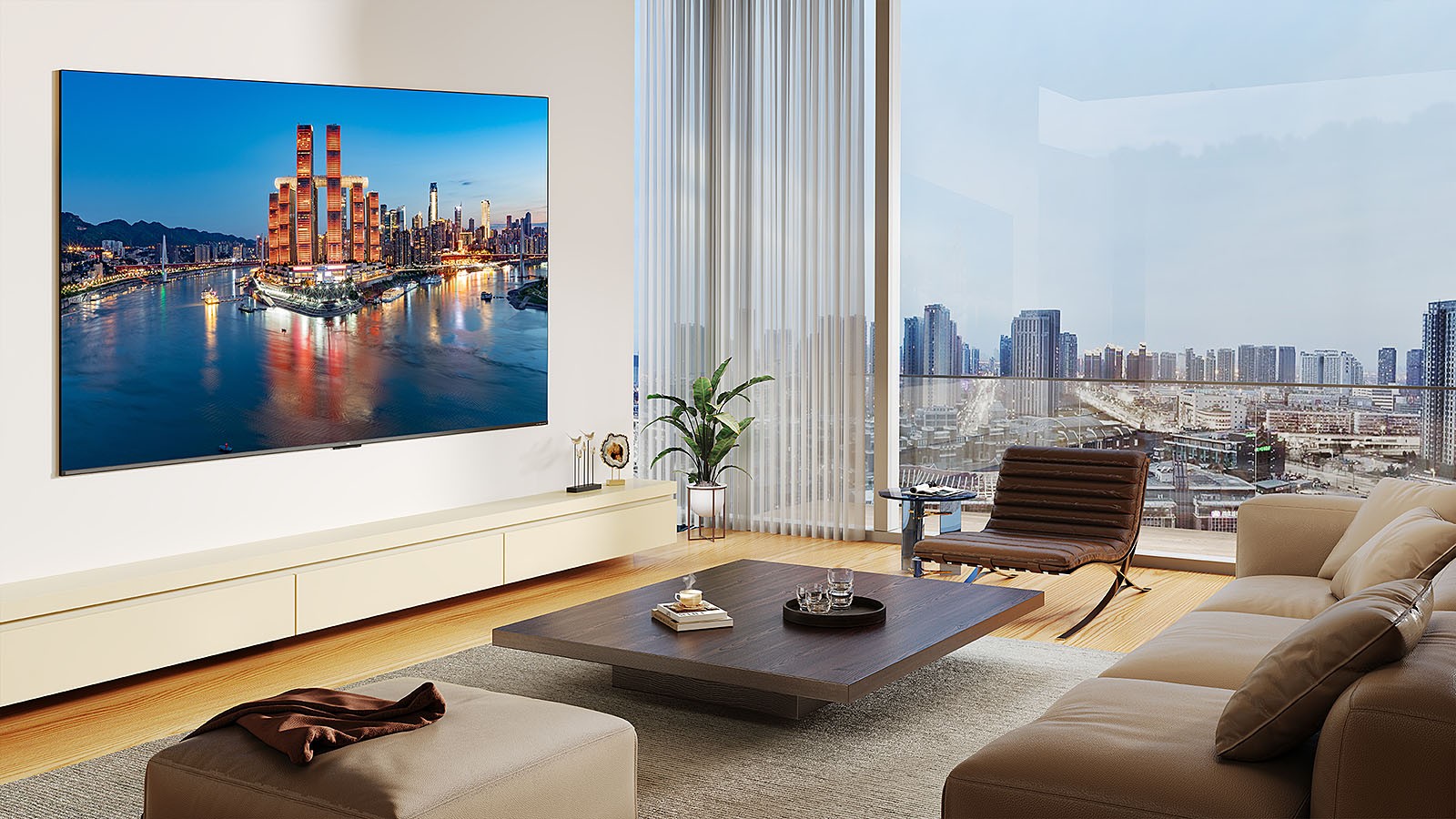

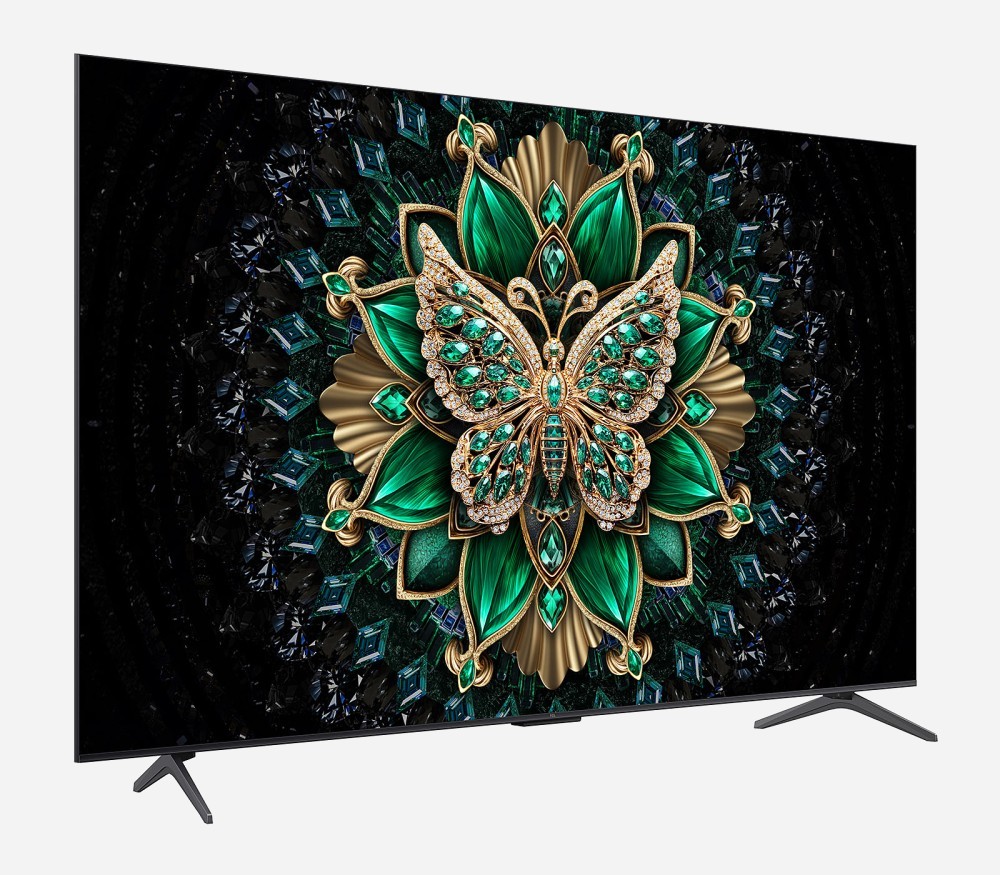

TCL C6K, minimalist design££££ Another remarkable point of the TCL C6K TVs is the almost total disappearance of the frame of the LCD panel. This is still visible at the bottom of the LCD panel but it is very fine everywhere else (see photos above and below). Sober, elegant, statutory! Last detail, the TCL C6K TVs benefit from a double foot (at each end of the screen).

Immediate availability. Indicative prices: €649 for the TCL 50C6K, €699 for the TCL 55C6K, €749 for the TCL 65C6K, €1,099 for the TCL 75C6K, €1,599 for the TCL 85C6K and €1,999 for the TCL 98C6K.

Reminder of the key characteristics of TCL C6K TVs:

• 10-bit panel

• [abc]LCD[/abc] VA panel

• [abc]Ultra HD[/abc]/[abc]4K[/abc] panel

• 144 Hz panel

• HVA Panel

• Processor: Quad Core

• Mega Contrast enhancement function

• Wide Color Gamut function

• UHD Color Extender function

• Multimedia gateway function [abc]UPnP[/abc] ([abc]DLNA[/abc])

• DVR function

• [abc]eARC[/abc] function

• [abc]VRR[/abc] function

• [abc]ALLM[/abc] (Auto Low Latency Mode) function

• 4K [abc]HFR[/abc] 120 function

• Quantum Dots function

• UHD Super Resolution function

• Game Master Pro 2.0 function

• DLG 288 Hz, DLG 240 Hz on 55"/55" function

• AiPQ Pro function

• [abc]HDR10[/abc] and [abc]HDR HLG[/abc] compatibility

• Compatibility [abc]HDR10+[/abc]

• Compatibility [abc]HDR10+ Adaptive[/abc]

• Compatibility [abc]Miracast[/abc]

• Compatibility [abc]HDR Dolby Vision IQ[/abc]

• Compatibility [abc]HEVC[/abc]

• Compatibility [abc]Dolby Atmos[/abc]

• Compatibility [abc]HBBTV[/abc]

• Compatibility FreeSync Premium Pro

• Compatibility [abc]CEC[/abc]

• Compatibility [abc]Canal Ready[/abc]

• Compatibility [abc]Bluetooth[/abc] 5.4

• Compatibility DTS Virtual:X

• Compatibility [abc]DTS-HD[/abc]

• [abc]HDCP[/abc] 2.2 compatibility

• [abc]Wi-Fi[/abc] ax compatibility

• [abc]Chromecast (built-in) compatibility[/abc]

• Dolby Vision IQ HDR compatibility

• Imax Enhanced certification

• Filmmaker Mode certification

• Outputs: 1 [abc]optical[/abc], 1 headphone

• Inputs: 4 [abc]HDMI[/abc] 2.1 inputs, 1 USB Host 3.0 port, 1 USB Host 2.0 port, 1 Ethernet port, 1 [abc]CI+ port[/abc]

• Multimedia [abc]AirPlay 2[/abc]

• HomeKit multimedia

• Google multimedia Assistant

• Multimedia Works with Alexa

• Google TV multimedia

• MEMC motion compensation

• Mini backlight system [abc]LED[/abc] [abc]Local Diming[/abc]

• Smoothness index PPI 4100

• Input Lag: < 6 ms

• Number of zone(s): 312

• Light peak: 1,000 nits

• Tuner [abc]DVB-T[/abc]2

• Tuner [abc]DVB-C[/abc]

• Tuner [abc]DVB-S[/abc]2

• Sound section: [abc]2.1[/abc]

• Power: 40 W

• Energy label: E in SRD/G in HDR
